11.3.1 Helmholtz solver using Brakhage-Werner formulation

Combined field integral equations combine single and double layer integral operators, one simple option is the Brakhage-Werner formulation.

The solution is represented as

\[u = (i \kappa S - D) \phi,\]

where \(\phi\) solve the boundary integral equation

\[\big( \tfrac{1}{2} + K + i \kappa V \big) \phi = u_{in} \qquad \text{on} \, \Gamma\]

from netgen.occ import *
from ngsolve import *
from ngsolve.webgui import Draw
from ngsolve.bem import *

kappa=10
order=4

screen = WorkPlane(Axes( (0,0,0), Z, X)).RectangleC(15,15).Face()

sp = Fuse(Sphere( (0,0,0), pi).faces)
screen.faces.name="screen"
sp.faces.name="sphere"
shape = Compound([screen,sp])

mesh = shape.GenerateMesh(maxh=5/kappa).Curve(order)
Draw (mesh);

fes_sphere = Compress(SurfaceL2(mesh, order=order, complex=True, definedon=mesh.Boundaries("sphere")))
u,v = fes_sphere.TnT()
fes_screen = Compress(SurfaceL2(mesh, order=order, dual_mapping=True, complex=True, definedon=mesh.Boundaries("screen")))
print ("ndof_sphere = ", fes_sphere.ndof, "ndof_screen =", fes_screen.ndof)

ndof_sphere =  17010 ndof_screen = 31110

with TaskManager():
    # V = HelmholtzSingleLayerPotentialOperator(fes_sphere, fes_sphere, kappa=kappa, intorder=10)
    # K = HelmholtzDoubleLayerPotentialOperator(fes_sphere, fes_sphere, kappa=kappa, intorder=10)
    # C = HelmholtzCombinedFieldOperator(fes_sphere, fes_sphere, kappa=kappa, intorder=10)
    C = HelmholtzCF(u*ds("sphere"), kappa)*v*ds
    u,v  = fes_sphere.TnT()
    Id = BilinearForm(u*v*ds).Assemble()

lhs = 0.5 * Id.mat + C.mat
source = exp(1j * kappa * x)
rhs = LinearForm(-source*v*ds).Assemble()

gfu = GridFunction(fes_sphere)
pre = BilinearForm(u*v*ds, diagonal=True).Assemble().mat.Inverse()
with TaskManager():
    gfu.vec[:] = solvers.GMRes(A=lhs, b=rhs.vec, pre=pre, maxsteps=40, tol=1e-8)

GMRes iteration 1, residual = 60.52440579389444
GMRes iteration 2, residual = 24.001710415059293
GMRes iteration 3, residual = 10.816186639702568
GMRes iteration 4, residual = 5.178501301182412
GMRes iteration 5, residual = 2.549268448878954
GMRes iteration 6, residual = 1.288805495688268
GMRes iteration 7, residual = 0.654983260249111
GMRes iteration 8, residual = 0.3554164558330171
GMRes iteration 9, residual = 0.19990866606606422
GMRes iteration 10, residual = 0.10836869993844744
GMRes iteration 11, residual = 0.05931445314039688
GMRes iteration 12, residual = 0.032946081231833825
GMRes iteration 13, residual = 0.01381913910824686
GMRes iteration 14, residual = 0.007360642470274834
GMRes iteration 15, residual = 0.0033138105281746016
GMRes iteration 16, residual = 0.0019472886266694918
GMRes iteration 17, residual = 0.0011529608192671682
GMRes iteration 18, residual = 0.000686545112533868
GMRes iteration 19, residual = 0.00040647668374400273
GMRes iteration 20, residual = 0.00023525302450811566
GMRes iteration 21, residual = 0.00012568335128557948
GMRes iteration 22, residual = 7.272844838705997e-05
GMRes iteration 23, residual = 4.2828685284217316e-05
GMRes iteration 24, residual = 2.2389470959100754e-05
GMRes iteration 25, residual = 1.1323654081077323e-05
GMRes iteration 26, residual = 5.681772319703282e-06
GMRes iteration 27, residual = 2.8154812159698156e-06
GMRes iteration 28, residual = 1.3918984915180715e-06
GMRes iteration 29, residual = 7.931632776571703e-07
GMRes iteration 30, residual = 4.5230612485298846e-07
GMRes iteration 31, residual = 2.723734968721833e-07
GMRes iteration 32, residual = 1.6096117668518013e-07
GMRes iteration 33, residual = 9.476709863744345e-08
GMRes iteration 34, residual = 5.214502615508517e-08
GMRes iteration 35, residual = 2.9709338426930645e-08
GMRes iteration 36, residual = 1.7339940734613136e-08
GMRes iteration 37, residual = 9.167410459543265e-09

Draw (gfu, order=5, min=-1, max=1);

prostprocessing on screen

uscat = GridFunction(fes_screen)
with TaskManager(pajetrace=10**8):
    # uscat.Set(1j*kappa*V.GetPotential(gfu)-K.GetPotential(gfu) , definedon=mesh.Boundaries("screen"))
    # uscat.Set(HelmholtzCF(u*ds("sphere"), kappa)(gfu)  , definedon=mesh.Boundaries("screen"))
    uscat.Set(1j*kappa*HelmholtzSL(u*ds("sphere"),kappa)(gfu) - HelmholtzDL(u*ds("sphere"), kappa)(gfu), \
              definedon=mesh.Boundaries("screen"))

print ("Scattered field")
Draw (uscat, mesh, min=-1,max=1, animate_complex=True, order=4);

Scattered field

uin = mesh.BoundaryCF( {"screen": source }, default=0)
print ("Total field")
Draw (uin-uscat, mesh, min=-1,max=1, animate_complex=True, order=4);

Total field

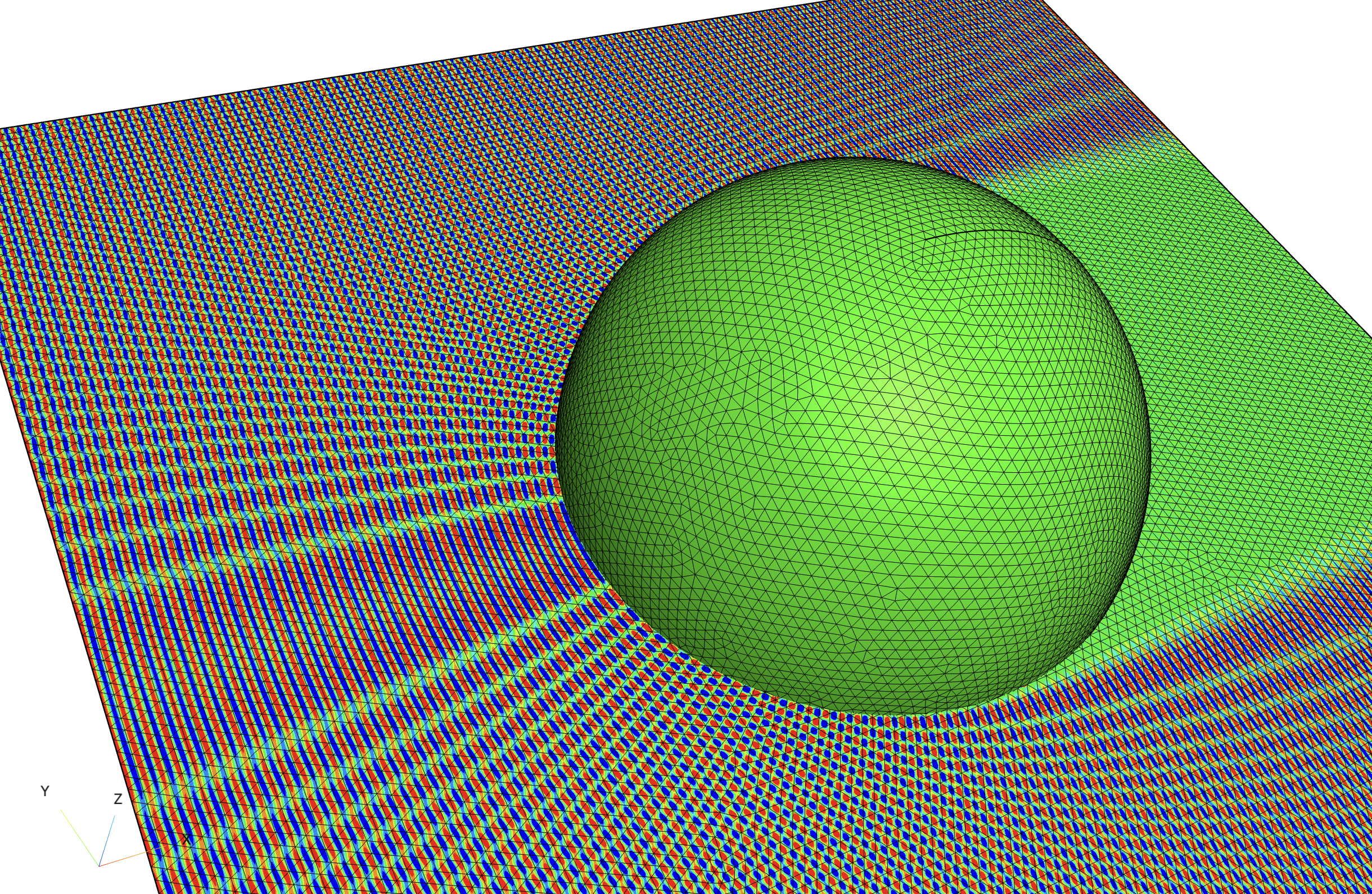

Scattering from sphere with \(D = 50 \lambda\). About 5 min on Macbook Apple M4 Pro
