Symbolic definition of forms : magnetic fieldΒΆ

We compute the magnetic field generated by a coil placed on a C-core. We see how to

  • model a 3D constructive solid geometry

  • set material properties from domain and boundary labels

  • define bilinear- and linear forms symbolically using trial- and testfunctions

Download cmagnet.py

from netgen.occ import *
from ngsolve import *


def MakeGeometry():
    box = Box((-1,-1,-1), (2,1,2))
    box.faces.name = "outer"
    core = Box((0,-0.05,0), (0.8,0.05,1)) - \
        Box((0.1,-1,0.1), (0.7,1,0.9)) - \
        Box((0.5,-1,0.4), (1,1,0.6))
    core.solids.name = "core"
    core.solids.maxh = 0.03

    coil = Cylinder((0.05,0,0.3), (0,0,1), 0.3, 0.4) - \
        Cylinder((0.05,0,0.3), (0,0,1), 0.15, 0.4)
    coil.solids.name = "coil"
    air = box - core - coil
    air.solids.name = "air"
    return Glue([core, coil, air])



mesh = MakeGeometry().GenerateMesh(maxh=0.5)

# curve elements for geometry approximation
mesh.Curve(5)

ngsglobals.msg_level = 5

fes = HCurl(mesh, order=4, dirichlet="outer", nograds = True)

# u and v refer to trial and test-functions in the definition of forms below
u = fes.TrialFunction()
v = fes.TestFunction()

mur = mesh.MaterialCF({ "core" : 1000 }, default=1)
mu0 = 1.257e-6
nu = 1/(mu0*mur)

a = BilinearForm(fes, symmetric=True)
a += nu*curl(u)*curl(v)*dx + 1e-6*nu*u*v*dx

c = Preconditioner(a, type="bddc")
# c = Preconditioner(a, type="multigrid", flags = { "smoother" : "block" } )

f = LinearForm(fes)
f += CoefficientFunction((y,0.05-x,0)) * v * dx("coil")

u = GridFunction(fes)


with TaskManager():
    a.Assemble()
    f.Assemble()
    solver = CGSolver(mat=a.mat, pre=c.mat)
    u.vec.data = solver * f.vec


Draw (u.Deriv(), mesh, "B-field", draw_surf=False)

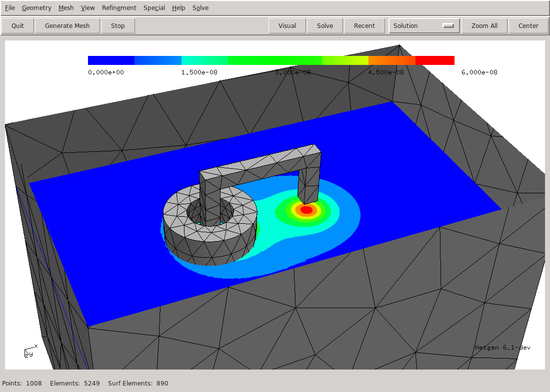

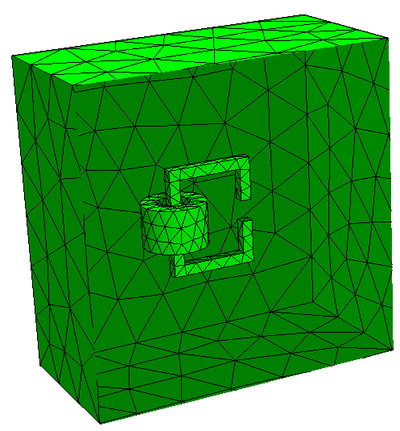

Mesh and magnitude of magnetic field visualized in Netgen:

../_images/cmagnet_mesh.jpg ../_images/cmagnet_solution.jpg
